DIY CONCRETE DISTORTION

The DIY Concrete Distortion is a "flat-pack" DIY version of the original concrete RAT based distortion with a few changes. As per the original - an internal voltage doubler takes the standard 9V centre negative power and doubles it to 18V for increased headroom. The OPA7 IC is still utilised here providing the classic low slew rate RAT drive sound.

Two additional sliders replace the original mod switches. One controlling a blend between two clipping modes (Stock & UV LED).The second puts the Ruetz bass mod on a variable resistor which gives more range on the high frequencies than the original switched mod.

This Kit presumes the user is comfortable with soldering and component identification and may be suited to someone who has already taken on a very simple project first.



• Kit Includes:

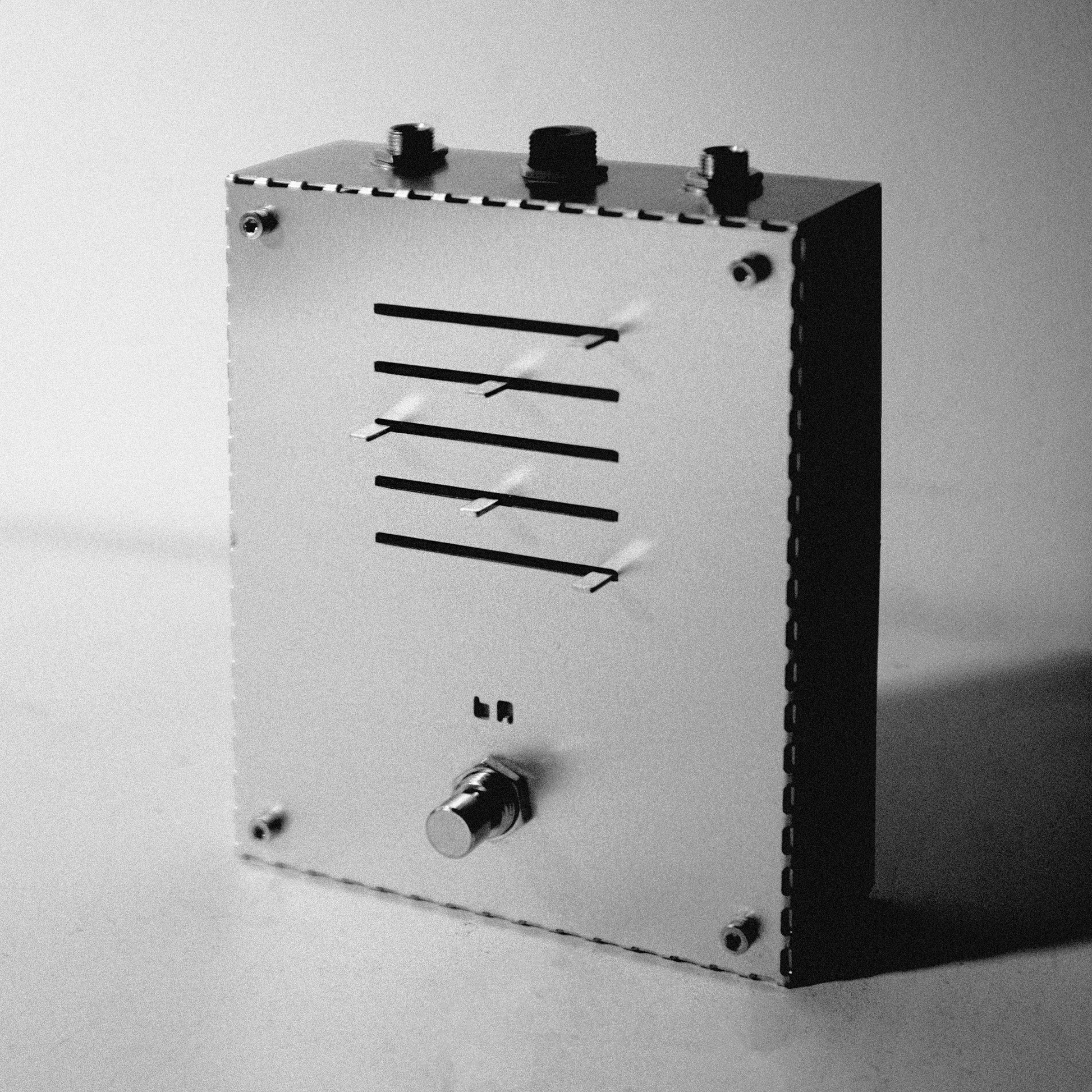

  - Full Foldable Aluminium Enclosure & Lid
  - Mounting Enclosure Hardware + Allen Key

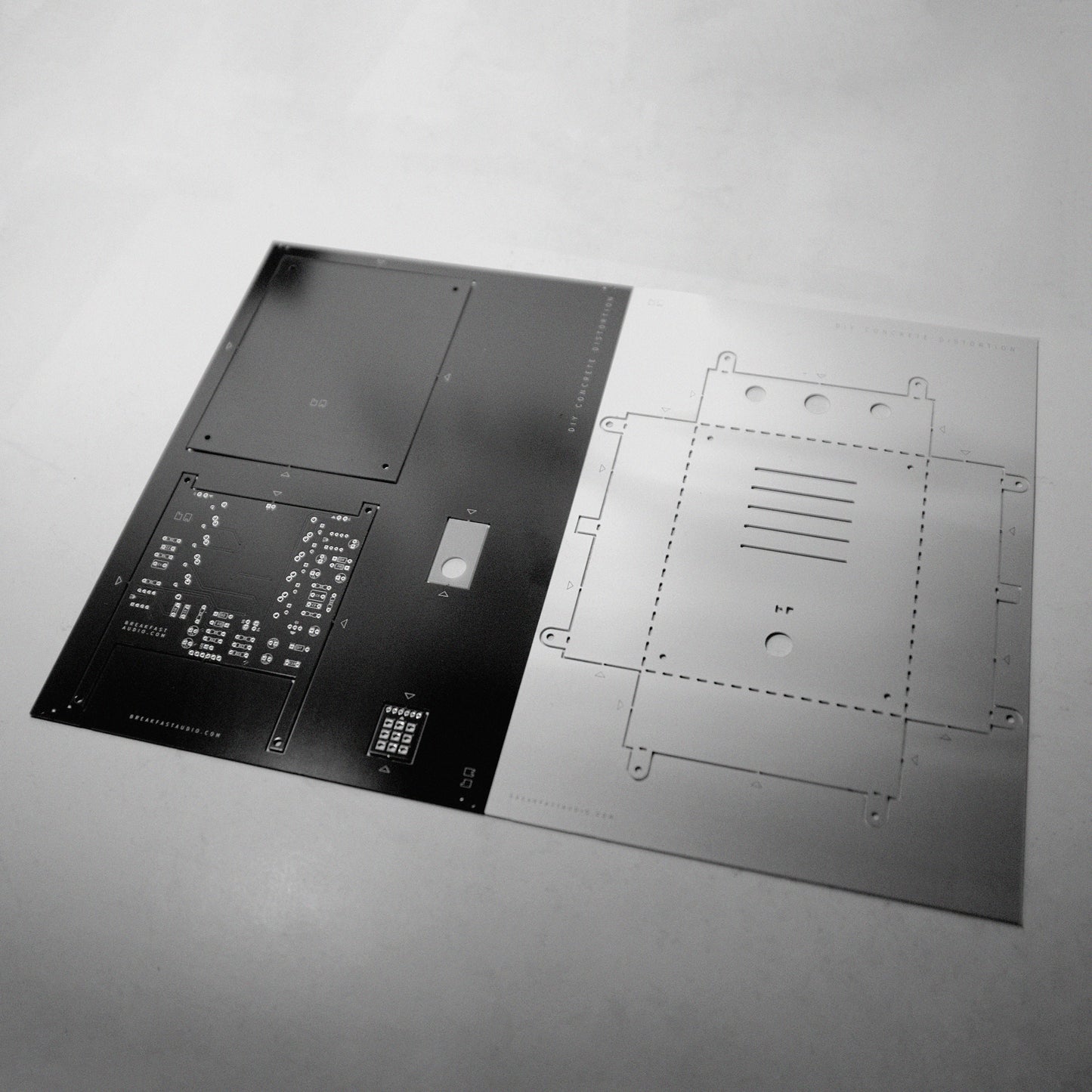

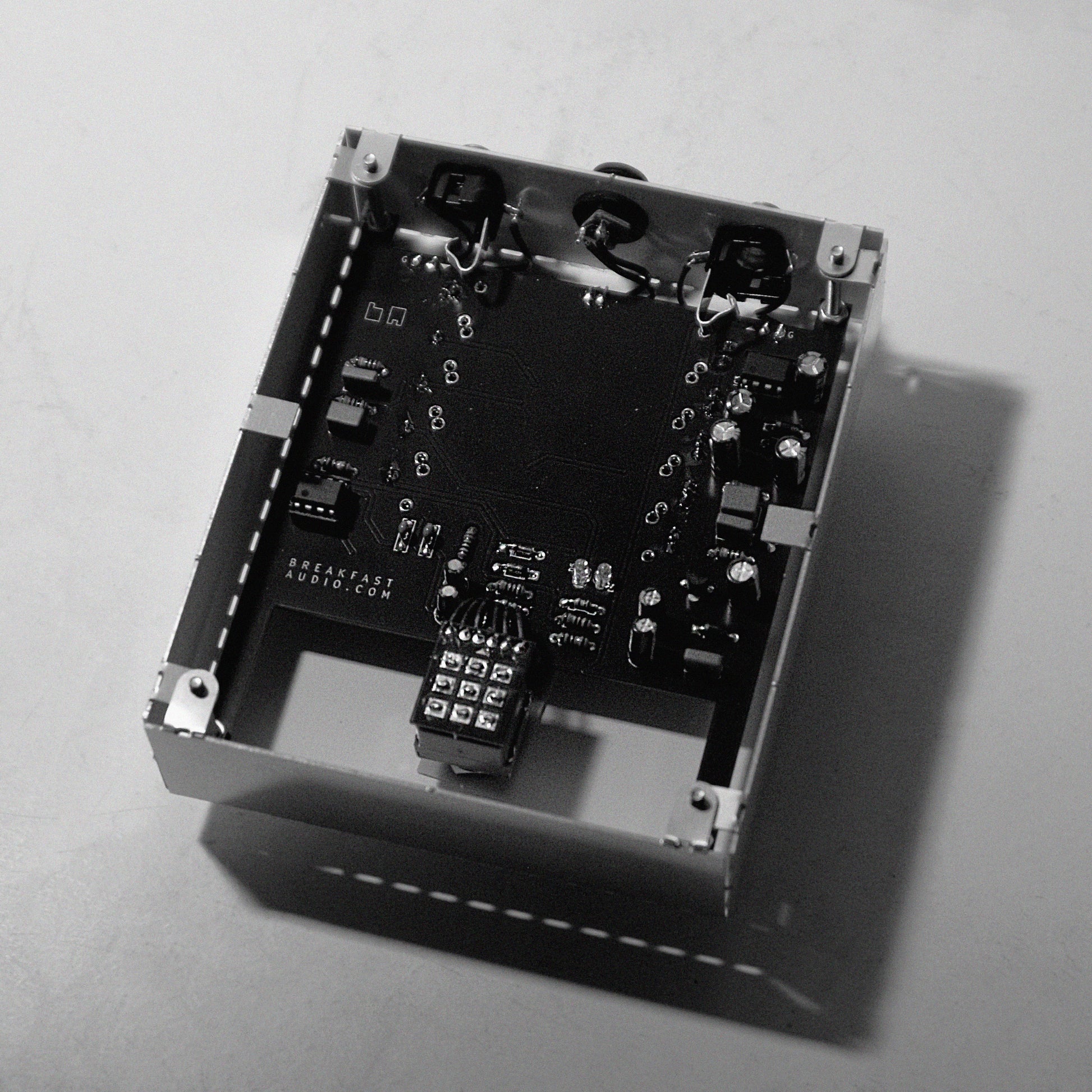

  - Main Circuit PCB
  - 3PDT PCB & LED lense
  - Instruction Zine & Sticker



• Kit Does Not Include:

  - PCB Components i.e. resistors etc
  - Wiring & Hardware i.e. Jacks, DC & 3PDT



PCB component buying guide can be found here including a one click basket for the PCB components:

COMPONENT LIST & BUYING GUIDE

Assembly Instructions are also hosted here:

DIY DISTORTION MANUAL

If Sourcing your own components please ensure all Capacitors and the OPA7 IC are rated to take 18v or above.

For Use With 9V DC Centre Negative Power Supplies Only



Full Mix Demo - I recommend the use of decent headphones when listening. Bass & Guitar recorded through the original Concrete Distortion Pedal.
